COMPUTADORES INDUSTRIALES
Combo Panel PC
Compact and projective capacitive touch panel PC with wide temperature and voltagesupport powered by NXP i.MX 6 Series Family
In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. Featuring cost effective and power efficiency, COMBO Series is an ideal HMI in factory automation, food and beverage industry, data collecting equipment environments.
Product Introduction

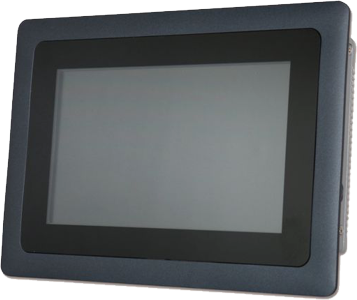

COMBO Series Panel PC is a new era and innovation of Portwell’s standard Panel PC product line.

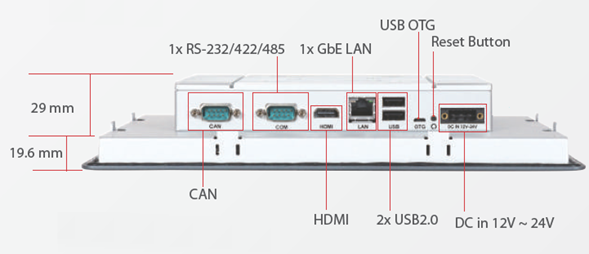

Powered by FreescaleTM i.MX6 processor, the cost effective and power efficient Panel PC comes with one Gigabit Ethernet, two USB 2.0 hosts, one OTG, one HDMI port, one serial port, one CAN port, a wide range DC input from DC 12V to 24V and an optional Wi-Fi/3G/4G LTE feature. Besides, it is equipped with 512MB or 2GB DDR3 memory down and 4GB/8GB eMMC, which targets to support mission-critical industrial applications.

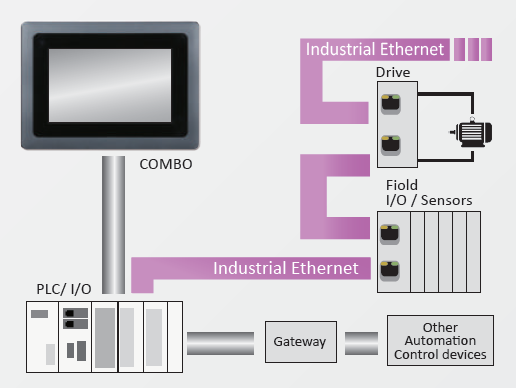

COMBO Panel PC can boot from the onboard eMMC or SD card to Yocto Linux 3.10.53 kernel version or Android 5.0 operating systems via U-Boot boot loader, specially customized to take full advantage of the i.MX6 CPU 3D graphics acceleration capabilities. To sum up, COMBO Series Panel PC is a ready platform for all kind of industrial applications, including factory automation, machine automation, data collecting and energy-saving control systems.
CAN Bus Connectivity
COMBO Panel PC features CAN Bus specifictation version 2.0B, which supports both standard and extended message frames communication, making it a suitable equipment for applications such as cars, trucks, tractors, trains, agricultural machinery, textile machinery, etc. With a high degree of reliability and stability, CAN Bus is also widely used in industrial control.
Projective Capacitive Multi-Touch Screen
COMBO Series Panel PC is a new era and innovation of Portwell’s standard Panel PC product line.

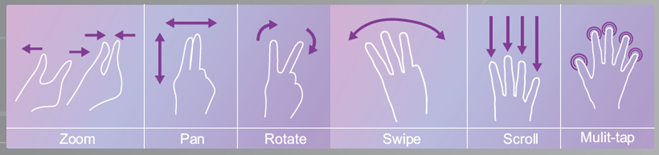

By adopting antiscratch surface with 7H hardness protection, high touch durability and long-term stability are built-in features of COMBO Panel PC. 10-points multi-touch supports a full set of gestures such as zooming in/out, panning, or rotating, giving users a whole new way to control and interact with what’s on the screen even with surgical gloves or thin cotton gloves.
