CPU Industrial NUVO-6000

Intel® 6th-Gen Skylake Core™ i7/i5 Fanless Box-PC with Up to 5 PCIe/PCI Expansion Slots


full-image

- Supports 6th-Gen Intel® Core™ i7/i5/i3, Pentium and Celeron® LGA1151 CPU

- Up to five expansion slots

    - x16 PCIe, x8 PCIe and three PCI slots (Nuvo-6032)

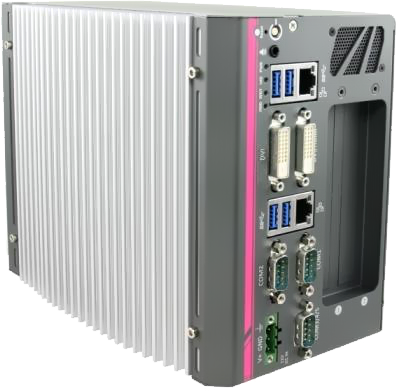

    - x16 PCIe and x8 PCIe slots (Nuvo-6002)

- Rugged, -25 °C to 60 °C fanless operation

- 2x GbE, 4x USB 3.0 and 5x COM ports

- Dual DVI display outputs

- Up to 3x 2.5" SATA accommodation and 1x mSATA socket

- Wall-mounting, DIN-rail mounting and rack-mounting available

- Automatic temperature sensing and fan control (optional)



Product Introduction

Nuvo-6000 series is the perfect replacement of your bulky rack-mount or wall-mount IPC systems.


full-image

Leveraging 6th-Gen Intel® Skylake platform, It delivers the same computing power as traditional IPCs, but in a more compact form-factor and fanless operation. Nuvo-6000 series supports LGA1151 socket-type CPU, thus you can choose from Core™ i7 to Celeron® depending on your performance and cost consideration. Its 5-slot capacity gives the same level of expandability as most IPCs. The front-accessible I/O design, including 2 GbE, 4 USB 3.0 and 5 COM ports, makes it easier to access your Nuvo-6000 when it's placed inside a cabinet or a rack.

Neousys' proven fanless design on Nuvo-6000 presents extraordinary reliability in all circumstances. And its versatile mounting options make it fit for desktop, cabinet or a 19" rack. With similar performance and cost, better form-factor and reliability, Nuvo-6000 series is speaking for itself on the new horizon of industrial computer.

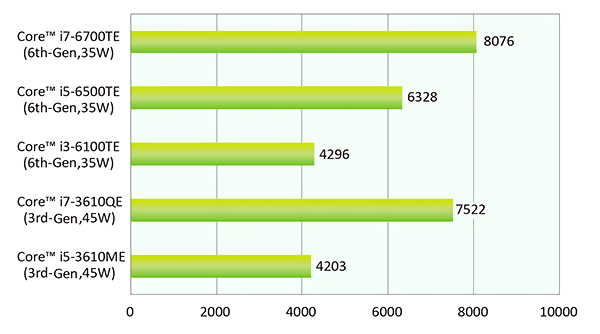

6th-Gen Core™ i Skylake Platform

full-image

Nuvo-6000 features Intel® 6th-Gen Core™ desktop processor to deliver the same computing power as conventional 19” IPC. Its socket-type CPU support allows users to flexibly select the CPU, from entry-level Celeron® to high-end Core™ i7, according to the consideration of performance demand and system cost.

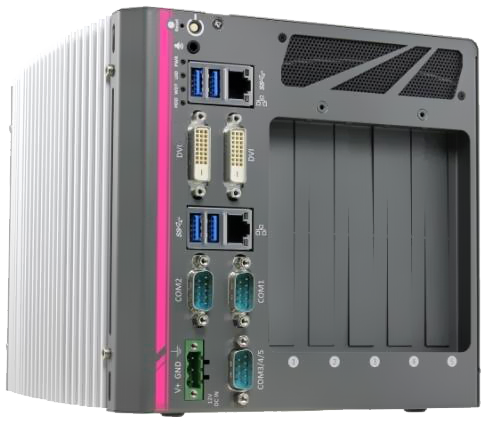

5-slot Expansion Capacity

full-image

Nuvo-6000 offers up to five PCIe/PCI slots in its compact chassis to deliver the same level of expandability as off-the-shelf IPCs. Users can install a wide variety of I/O, communication, vision and motion cards for versatile applications. For the configuration with only PCIe cards, Nuvo-6002 presents a slimmer model with a x16 and a x8 PCIe slot.

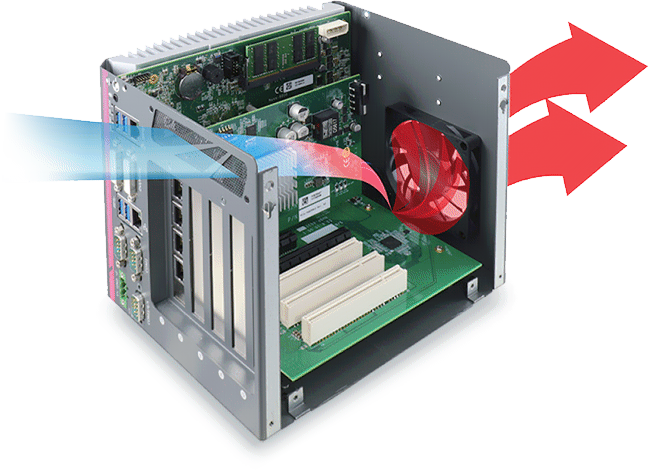

Regulated Air Flow for Add-on Cards

full-image

When add-on cards are installed, it’s crucial to maintain a reasonable temperature inside the chassis. Nuvo-6000 has well-designed air inlet apertures and smart fan option to create regulated air flow through all cards , thus effectively brings out the heat and significantly increases the system reliability.


Specification

System Core
Processor Supports 6th-Gen Intel® Core™, Pentium® and
Celeron® LGA1151 CPU
Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP)
Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP)
Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)
Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP)
Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
Chipset Intel® H110 Platform Controller Hub
Graphics Integrated Intel® HD 530/510 Controller
Memory Up to 16 GB DDR4-2133 by one SODIMM socket
I/O Interface
Ethernet Port 1x Gigabit Ethernet port by Intel® I219-LM
1x Gigabit Ethernet port by Intel® I210-IT
Video Port 2x DVI-D connectors for DVI outputs,
supporting 1920x1200 resolution
Serial Port 2x Software-programmable RS-232/422/485 ports
3x 3-wire RS-232 ports
USB 4x USB 3.0 ports
Audio 1x Speaker-out
Expansion Bus/ Internal I/O Interface
Remote Ctrl. & Status Output 1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output
PCI Express 1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals
1x PCIe x8 slot @ Gen2, 4-lanes PCIE signals
PCI 3x 33MHz/32-bit PCI slots(only for Nuvo-6032)
Storage Interface
SATA 3x SATA ports for 2.5" HDD/SSD installation
(Nuvo-6032)
1x SATA port for 2.5" HDD/SSD installation
(Nuvo-6002)
mSATA 1x full-size mSATA socket
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35V DC input
Mechanical
Dimension 184 mm (W) x 225 mm (D) x 174 mm (H)
(Nuvo-6032)
124 mm (W) x 225 mm (D) x 174 mm (H)
(Nuvo-6002)
Weight 3.5 Kg (Nuvo-6032)
2.8 Kg (Nuvo-6002)
Mounting Wall-mounting (standard)
DIN-Rail mounting (optional)
rack-mounting (optional)
Environmental
Operating Temperature -25°C ~ 60°C */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Shock Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
EMC CE/FCC Class A, according to EN 55022 & EN 55024
